Visão geral

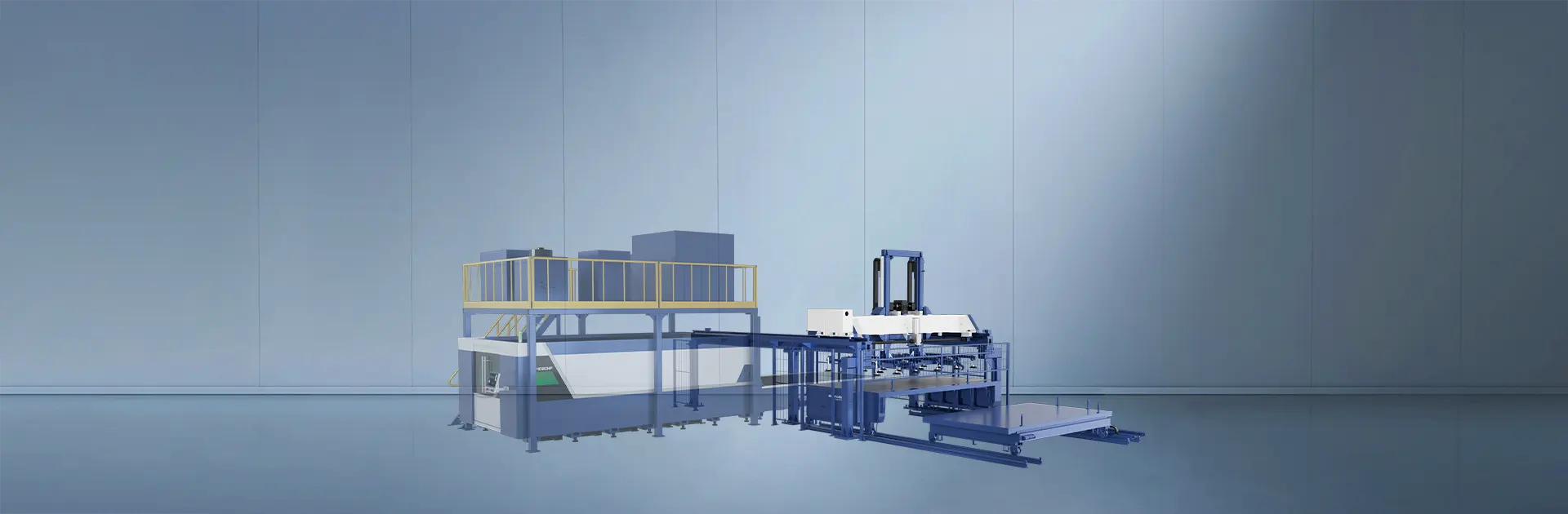

SL Semi-Auto Loading Unit - Sistema CNC integrado para produção eficiente

A unidade semi-automática da série SL integra controles de carga/descarga, alimentação automatizada, corte CNC e manuseio de materiais. Permite fluxos de trabalho semi-automatizados de programação a corte, aumentando a eficiência, reduzindo mão de obra e custos, mantendo uma operação amigável.

Características do Sistema

• Chapas de carga totalmente automáticas, o medidor de carga máximo atinge até 40mm.

• O sistema de carregamento a vácuo liga-se aos sistemas de produção para execução e gestão de tarefas.

• A solução de automação a laser automatiza os fluxos de trabalho de ordem a processo, incluindo agendamento, transferência de material e usinagem.

Peças principais

A máquina de alimentação de máquina única consiste principalmente em um caminhão de matéria-prima, um pórtico principal, uma treliça, um dispositivo de alimentação, uma combinação de carro de classificação e um sistema de controle.

Pórtico

Todos os componentes da estrutura principal do pórtico são soldados usando perfis, e o processo é soldagem → usinagem áspera → envelhecimento de vibração → usinagem de precisão, que efetivamente resolve o estresse causado pela soldagem e processamento e melhora a estabilidade da estrutura principal do pórtico. A viga de ponte tem uma superfície de guia plana finamente usinada para que a viga transversal se mova no pórtico.

Truss

A parte do fardo consiste principalmente do fardo, do mecanismo da transmissão, do dispositivo do guia, dos rolamentos, e das outras peças. Existem dois servo motores , um que conduz o feixe transversal para mover-se para a frente e para trás, e o outro que conduz o mecanismo da bandeja do material para mover-se para cima e para baixo. A treliça move-se horizontalmente na estrutura do pórtico através dos rolamentos de came, como mostrado na imagem.

Dispositivo de alimentação de ventosas a vácuo

O mecanismo de alimentação compreende um quadro principal soldado com sistemas de orientação-transmissão e ventosas a vácuo. Cada copo é controlado independentemente por válvulas solenóides, adaptando-se às dimensões da placa para captação rápida e precisa. Os recursos de segurança (sensores de limite de viagem e dispositivos anticolisão) garantem operações de elevação seguras.

Caminhão de matérias-primas

O sistema automático da linha de montagem é equipado com um caminhão da matéria prima 4T que pode mover-se automaticamente na trilha, conseguindo o carregamento dos materiais.

• Ao fazer caminhões de matéria-prima, substitua o armazém de material e obtenha a alimentação automática de materiais para a linha de produção de uma maneira de baixo custo

• Ao fazer um caminhão de triagem, ele pode coletar peças de trabalho e materiais residuais de forma centralizada, e o departamento de produção da oficina de triagem centralizada e triagem de folha única pode planejar de forma flexível.
